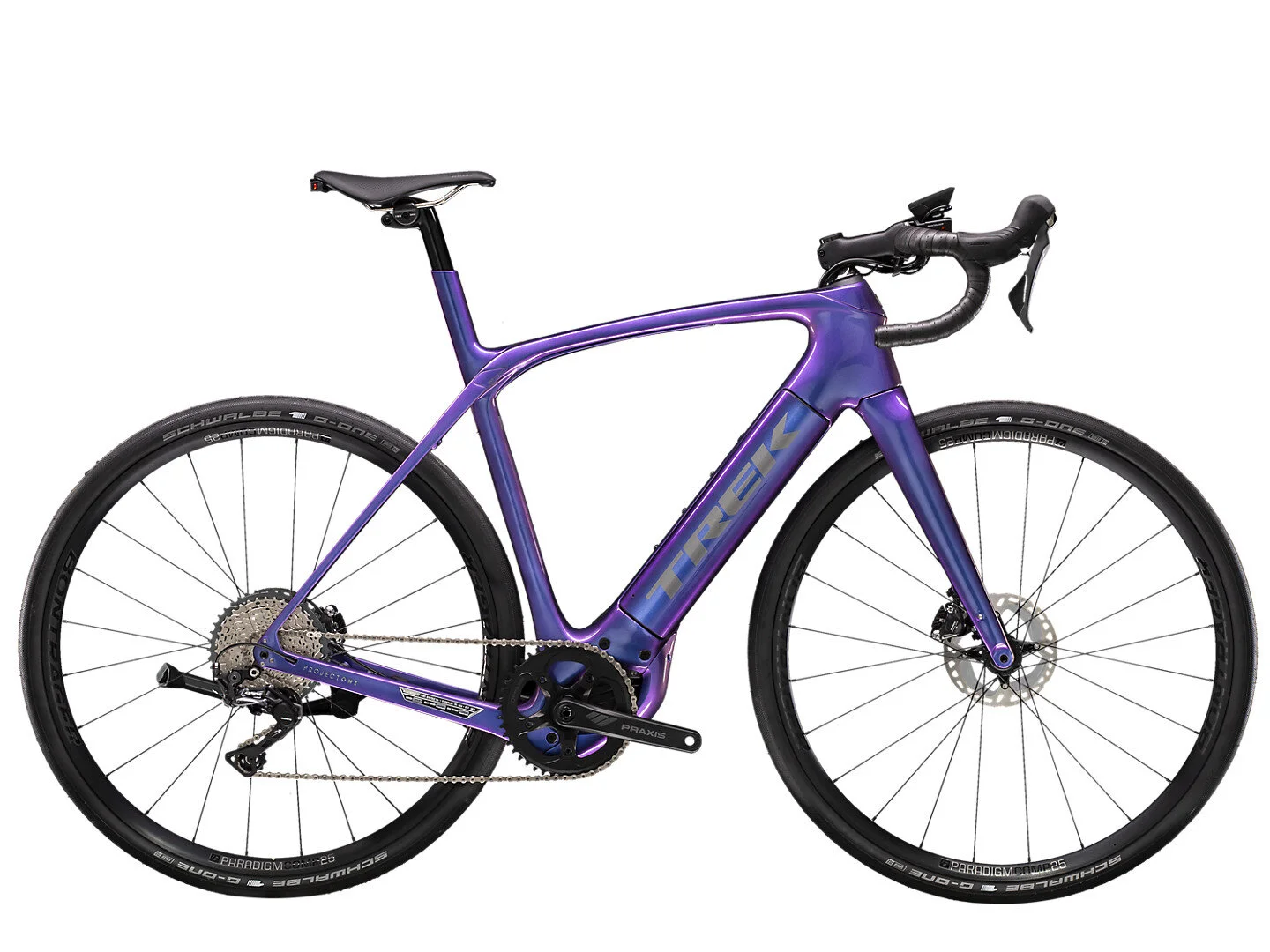

Domane+ HP is a drop-bar electric road bike that makes longer, faster road rides possible. A carbon frame with IsoSpeed and a stable endurance geometry, a light and powerful Bosch drive system, and a sleek design with integrated lighting features make Domane+ the ideal ride for cyclists who want speed, all-road performance, and endless style.

Specifications

*spec applies to all sizes unless otherwise noted

FramesetFrame500 Series OCLV Carbon, Removable Integrated Battery (RIB), tapered head tube, rear IsoSpeed, internal routing, DuoTrap S compatible, flat mount disc, fender mounts, 142x12mm thru axleForkDomane+ carbon, tapered steerer, flat mount disc, 12x100mm thru axle

WheelsFront wheelBontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axleRear wheelBontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano 11-speed freehub, 142x12 thru axle

DrivetrainShifterShimano GRX RX810, 11 speedRear derailleurShimano GRX RX812, long cage, 42T max cog*CrankSize: 52
Praxis Alloy for Bosch, 46T, 170mm lengthSize: 54, 56
Praxis Alloy for Bosch, 46T, 172.5mm lengthSize: 58, 60
Praxis Alloy for Bosch, 46T, 175mm length*Crank armSize: 52
Praxis Alloy for Bosch, 46T, 170mm lengthSize: 54, 56
Praxis Alloy for Bosch, 46T, 172.5mm lengthSize: 58, 60
Praxis Alloy for Bosch, 46T, 175mm lengthCassetteShimano Deore XT M8000, 11-42, 11 speedChainShimano Ultegra HG701, 11-speed

ComponentsSaddleBontrager Aeolus Elite, austenite rails, 145mm width*SeatpostSize: 52, 54, 56
Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, short lengthSize: 58
Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, tall length*HandlebarSize: 52
Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 40cm widthSize: 54, 56
Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm widthSize: 58, 60
Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm widthHandlebar tapeBontrager Supertack Perf tape*StemSize: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm lengthSize: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm lengthSize: 58, 60
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm lengthBrakeShimano GRX hydraulic disc, flat mount*Brake rotorSize: 52, 54, 56, 58, 60
Shimano RT800, 160mm, centerlockSize: 52, 54, 56, 58, 60
Shimano MT900, 160mm, centerlockSize: 52, 54, 56, 58, 60
Shimano EM810, 160mm, centerlock

AccessoriesBatteryBosch PowerTube 500ControllerBosch Kiox with Anti-theft solutionMotorBosch Performance Speed, 75 Nm, 28 mph / 45 kph*LightSize: 52, 54, 56, 58, 60
Bontrager Lync headlight, 1000 lumensSize: 52, 54, 56, 58, 60
Domane+ rear light, STVZO compliantKickstandPletscher Comp 40 Flex, adjustable, rear mount

WeightWeight56 - 17.08 kg / 37.66 lbsWeight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
