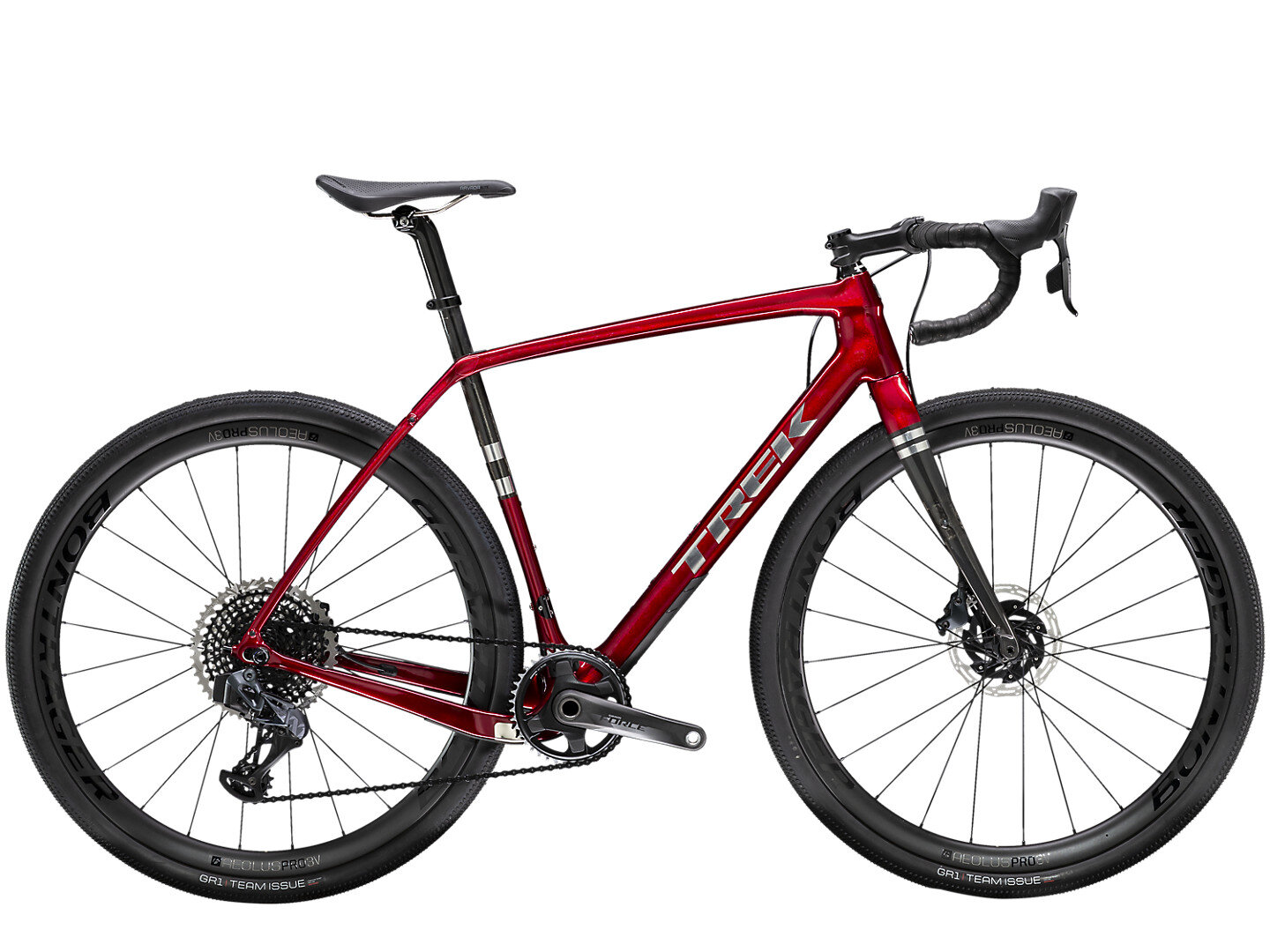

Checkpoint SL 7 pairs our best carbon gravel frame with high-tech parts picked for performance and incredible ride quality on the toughest and roughest gravel adventures. A lightweight OCLV Carbon frame with gravel-smoothing IsoSpeed, a SRAM wireless electronic drivetrain, carbon wheels, and extra mounts for gear and accessories give you the comfort and capability you need to tackle your next all-road excursion.

Specifications

*spec applies to all sizes unless otherwise noted

FramesetFrame500 Series OCLV Carbon, IsoSpeed, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and fender mounts, flat mount disc, Stranglehold dropouts, 142x12mm thru axleForkCheckpoint carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

WheelsFront wheelBontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axleRear wheelBontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axleTireBontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40c

DrivetrainShifterSRAM Force eTap AXS, 12 speedRear derailleurSRAM XX1 Eagle AXS*CrankSize: 49
SRAM Force, 40T, 24mm spindle, 165mm lengthSize: 52
SRAM Force, 40T, 24mm spindle, 170mm lengthSize: 54, 56
SRAM Force, 40T, 24mm spindle, 172.5mm lengthSize: 58, 61
SRAM Force, 40T, 24mm spindle, 175mm lengthCassetteSRAM XG-1295 Eagle, 10-50, 12 speedChainSRAM XX1 Eagle, 12 speed

ComponentsSaddleBontrager Arvada Elite, stainless steel rails, 138mm width*SeatpostSize: 49, 52, 54, 56
Bontrager carbon seatmast cap, 20mm offset, short lengthSize: 58, 61
Bontrager carbon seatmast cap, 20mm offset, tall length*HandlebarSize: 49
Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 38cm widthSize: 52
Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 40cm widthSize: 54, 56
Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm widthSize: 58, 61
Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm widthHandlebar tapeBontrager Supertack Perf tape*StemSize: 49
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm lengthSize: 52, 54
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm lengthSize: 56, 58
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm lengthSize: 61
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm lengthHeadsetFSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottomBrakeSRAM Force eTap AXS hydraulic disc, flat mount

WeightWeight56 - 8.65 kg / 19.07 lbsWeight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
