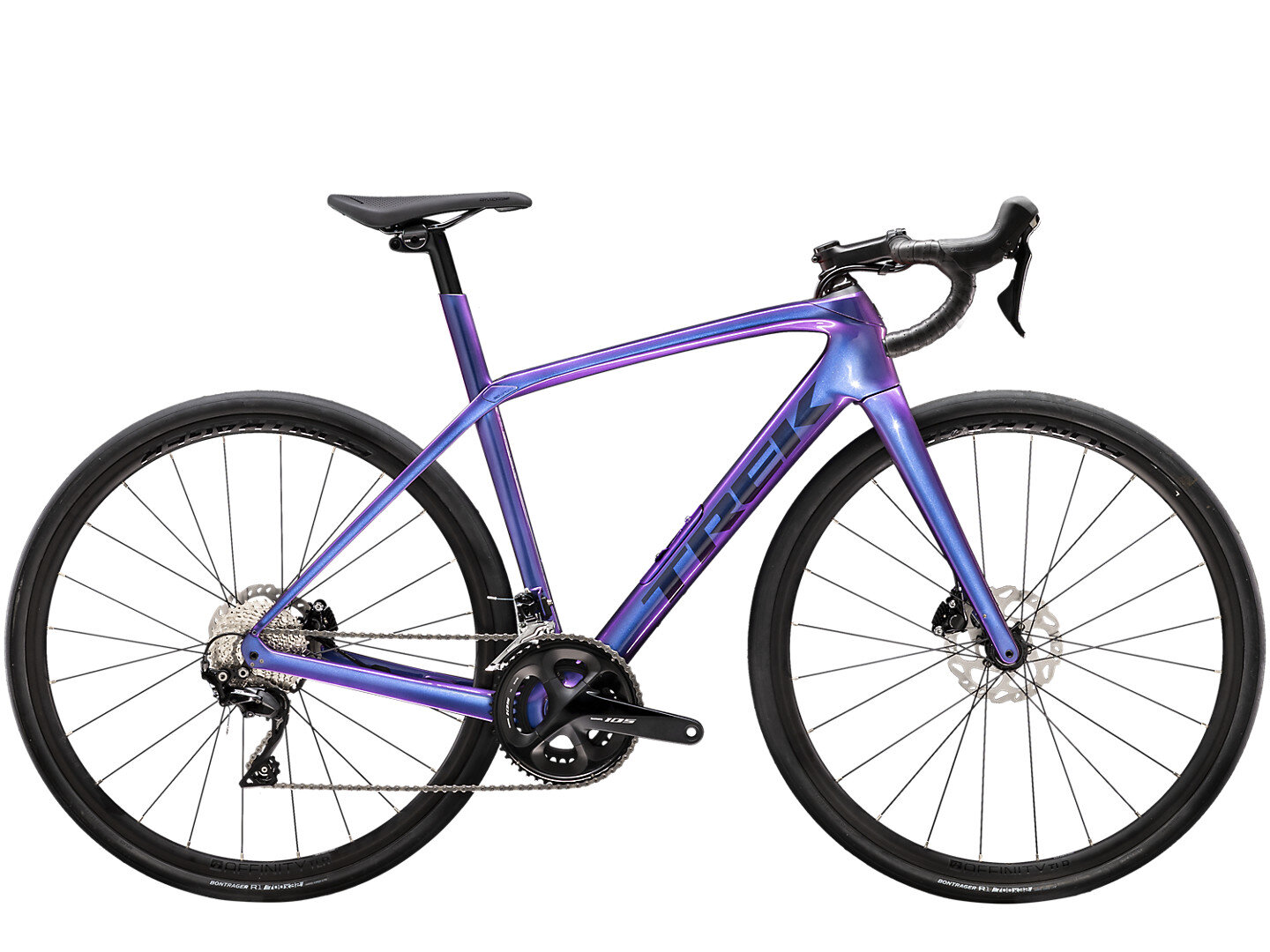

Domane SL 5 is all about smooth riding, speed, and versatility. The lightweight OCLV Carbon frame has both Front and Rear IsoSpeed to smooth out bumps in the road and reduce fatigue so you can stay stronger on long adventures. It has a reliable Shimano 105 drivetrain, disc brakes for all-weather stopping power, and an easy-access internal storage compartment for stowing ride essentials.

Specifications

*spec applies to all sizes unless otherwise noted

FramesetFrame500 Series OCLV Carbon, front & rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 142x12mm thru axle*ForkSize: 44, 47
Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axleSize: 50, 52, 54, 56, 58, 60, 62
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

WheelsFront hubBontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axleRear hubBontrager alloy, sealed bearing, centerlock, Shimano 11-speed freehub, 142x12mm thru axleRimBontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, presta valveSpokes14g stainless steel, blackTireBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c

Drivetrain*ShifterSize: 44, 47, 50, 52
Shimano 105 R7025, short-reach lever, 11 speedSize: 54, 56, 58, 60, 62
Shimano 105 R7020, 11 speedFront derailleurShimano 105 R7000, braze-onRear derailleurShimano 105 R7000, long cage, 34T max cog*CrankSize: 44, 47
Shimano 105 R7000, 50/34 (compact), 165mm lengthSize: 47, 50, 52
Shimano 105 R7000, 50/34 (compact), 170mm lengthSize: 54, 56
Shimano 105 R7000, 50/34 (compact), 172.5mm lengthSize: 58, 60, 62
Shimano 105 R7000, 50/34 (compact), 175mm lengthBottom bracketPraxis, T47 threaded, internal bearingCassetteShimano 105 HG700-11, 11-34, 11 speedChainShimano 105 HG601, 11 speed

ComponentsSaddleBontrager Arvada Comp, steel rails, 138mm width*SeatpostSize: 44, 47, 50, 52, 54, 56
Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, short lengthSize: 58, 60, 62
Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, tall length*HandlebarSize: 44, 47
Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 36cm widthSize: 50
Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm widthSize: 52
Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm widthSize: 54, 56
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm widthSize: 58, 60, 62
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm widthHandlebar tapeBontrager Supertack Perf tape*StemSize: 44
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm lengthSize: 47
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm lengthSize: 50
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm lengthSize: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm lengthSize: 56, 58
Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 100mm lengthSize: 60, 62
Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm lengthSize: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm lengthSize: 60, 62
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm lengthBrakeShimano 105 hydraulic disc, flat mountBrake rotorShimano SM-RT70, 160mm, Centerlock

AccessoriesBagBontrager BITS Internal Frame Storage Bag

1.


   Weight

   Weight56 - 9.78 kg / 21.57 lbs

   Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
